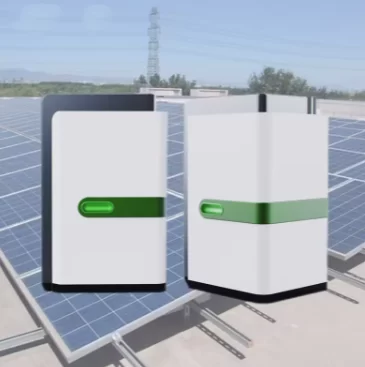

Long Lifespan Photovoltaic System Hybrid 50KW 100KWh
The HJ-HV-50-100 is an advanced high-voltage all-in-one solar energy storage solution designed for hybrid photovoltaic systems in industrial and commercial scenarios.
With a 50kW inverter and 100kWh LiFePO4 battery pack, this product integrates energy conversion, intelligent management, and reliable safety protection into one compact cabinet.
Built for high efficiency, long lifespan, and low maintenance, it enables users to maximize solar energy utilization, reduce electricity costs, and ensure stable power supply for various applications.
High Efficiency and Long Lifespan – Equipped with premium LiFePO4 (LFP) cells offering over 6000 charge cycles and a 10-year warranty, ensuring consistent performance and reliability.
Smart Energy Management – Integrated EMS supports multiple working modes, enabling seamless on/off-grid switching and optimized energy dispatch.
High Voltage & High Power Design – Nominal system voltage up to 716.8V, delivering 50kW output and supporting large-scale industrial loads.
Flexible Configuration – Modular design allows scalable capacity options from 30kWh to 100kWh, meeting diverse application needs.
Comprehensive Safety Protection – IP65-rated cabinet with multi-level BMS, overvoltage, short circuit, and temperature protection.
Wide Environmental Adaptability – Operating temperature from -20°C to 55°C, suitable for outdoor and harsh environments.
Global Compliance – Certified to CE, IEC62619, UL9540A, and UN38.3, meeting international standards for safety and performance.
Industrial and Commercial Facilities – Peak shaving, demand charge reduction, and backup power supply for factories, logistics centers, and data centers.
Solar-Plus-Storage Systems – Enables self-consumption optimization and grid independence for distributed PV systems.
Microgrids and Off-grid Projects – Provides stable energy storage for remote or islanded microgrids, ensuring power reliability.
| HV-50-100 All-in-One Energy Storage Cabinet | |||
|---|---|---|---|
| Brand | HuiJue | Model | HV-50-100 |
| Battery Type | LiFePO4 (LFP) | System Energy | 100kWh |
| System Power | 50kW | Nominal Voltage | 512 / 716.8V (optional) |
| Cycle Life | ≥6000 cycles (25°C, 0.5C rate, 70% EOL) | Recommended DOD | 90% |
| Charge/Discharge Current | 100A nominal / 125A peak | Efficiency | ≥90% |
| Operating Temperature | Charge: 0–55°C / Discharge: -20–55°C | Storage Temperature | 0–35°C |
| Protection Level | IP65 | Communication Port | RS485, CAN2.0 |
| Display | LCD (SOC%, Power, Total Voltage) | Cooling Method | Natural air cooling |
| Installation | Floor-mounted, indoor/outdoor | Weight | ≈700 kg |
| Dimensions (L×W×H) | 1250 × 750 × 1700 mm | Altitude | ≤2000m |
| Certifications | CE, IEC62619, UL1973, UL9540A, UN38.3 | Warranty | 10 years |
